exo
digital throttle for paramotors
AEF introduces EXO,
a new generation throttle, shaped for classical steering,
EXO swill be an extension of your arm and hand.
EXO THROTTLE CARACTERISTICS :
# handle delivered complete, length sleeve 140 cm
# PA6 modified material, validated with Cameleon
# Ambidextrous design, assembly with either right or left hand
# Maximum travel capacity: 30 mm
# Switches ON and OFF, electric starter and motor shutdown
#Four electrical wires, 2 for ON and 2 for OFF
# Millimeter cruise control, release with one hand in case of emergency
# 3D files provided for personal 3D printing of spare parts
# Adjustable strap
# Installation instructions and user handbook
ERGONOMICS
HAND GRIP OF THE STRAP WITH LEFT OR RIGHT HAND

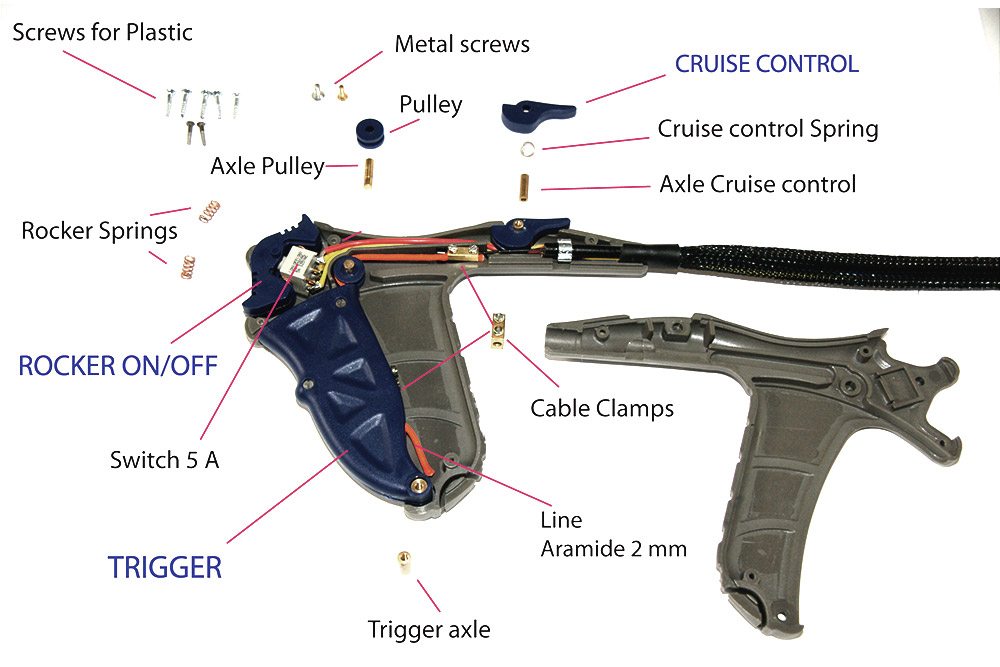

ANATOMY
CRUISE CONTROL
ROCKER ON/OFF
TRIGGER
Cruise Control Spring
Axle Cruise control
Cable Clamps
Line
Aramide 2 mm
Trigger Axle
Switch 5 A
Rocker Springs
Axle Pulley
Pulley
Metal Screws
Special plastic screws

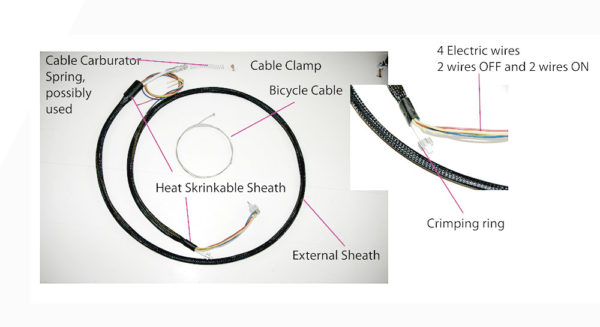

4 Electrical wires
2 wires OFF and 2 wires ON
Crimping ring
External sheath
Heat shrinkable Sheath
Cable clamp
Bicycle Cable
Cable Carburator spring,
possibly used
exo
Creation process of a throttle for paramotor
Concept research, Development and Modelling, Design, 3D Design, Physical Tests and Industrialisation...
Birth of the EXO throttle
Exo required more than 2 years of research, 7 distinct versions and more than 15 models and prototypes.
The process of creating such a tool involves moments of excitement, success, but also failures and disappointments.
With countless small changes, the puzzle is built step by step… and one day, everything assembles correctly, everything works perfectly, a new product is born!
It is this story that we want to share here, with a series of images presented chronologically.
3D PRINT
"Cruise control" CAD files
TECHNICAL INFORMATIONS
